To make custom gauge faces, you’ll need a few tools. First, an image editing software like Photoshop or GIMP to create the design for your gauge face. You will also need some type of cutting tool like scissors or a craft knife if you plan on using paper as your template material.
Additionally, you may want to use transfer tape and/or adhesive spray to help with the application process. Finally, some sort of clear protective coating should be used once the gauge face has been applied in order to protect it from wear and tear over time. Once all these materials are gathered together, begin by creating the design for the gauge face with your chosen image editor and print out a copy of it on either standard printer paper or sticker paper depending on how permanent you would like it to be.
Cut out around each individual element so that they can be pieced together onto the surface properly and then apply them one at a time with either transfer tape or adhesive spray before finally spraying it down with a clear protective coating layer after everything is set in place.
- Step 1: Gather Materials – You will need a computer, printer and paper to print the gauge face on
- Additionally, you will need scissors or an X-Acto knife and some clear adhesive vinyl for your gauge face

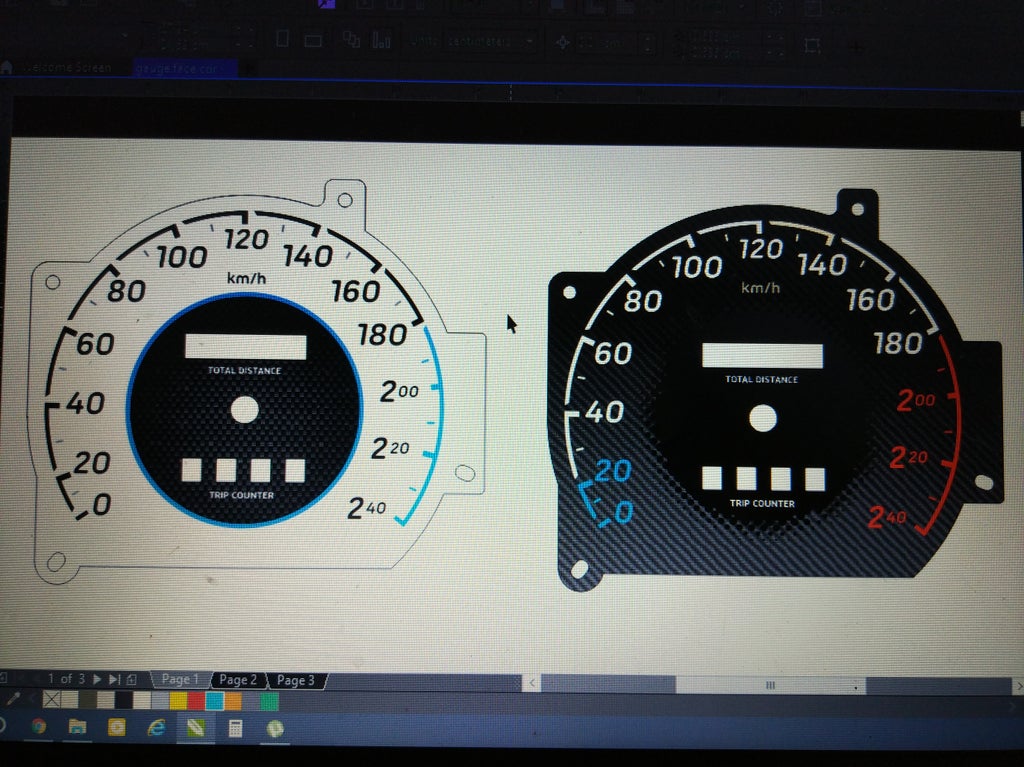

- Step 2: Design Your Gauge Face – Using a design software of your choice (e
- , Adobe Photoshop) create your custom design for the gauge face
- Consider including elements such as text and graphics in your design as well as any cutouts needed to fit around existing components on the vehicle’s dash board where the gauges are located
- Once finished with designing, save and print out onto paper or cardstock using a color printer
- Step 3: Cut Out The Gauge Face – Use either scissors or an X-acto knife to carefully cut out each piece of the printed design according to its shape, leaving enough space around it so that when applied it won’t cover up any existing details on the vehicle’s dashboard
- Make sure all pieces line up properly before continuing onto next step
- Step 4: Adhere The Gauge Face To Vehicle Dashboard – Place clear adhesive vinyl sheet over top of printed designs and cut out openings for all necessary components such as buttons, knobs etc
- Peel off backing from vinyl sheet then adhere gently but firmly onto dashboard making sure all edges are lined up correctly with each other before pressing down completely into place
- Allow time for adhesive to dry fully before testing out new custom gauge faces!
Credit: www.instructables.com
What Material are Gauge Faces Made Of?
Gauge faces are a type of instrumentation component used to display readings. They come in many sizes and shapes, depending on the application they are needed for and can be made from a variety of materials. The most common material used to make gauge faces is plastic; however, metal such as brass or stainless steel may also be used.
Plastic gauge faces offer resistance to both corrosion and wear, making them ideal for applications that require regular use or exposure to harsh environments. Metal gauge faces provide more durability compared to plastic options but may not work as well in corrosive environments due to their susceptibility to rusting over time. No matter what material you choose for your gauge face needs, it is important that the manufacturer has a quality control program in place so that each part meets all safety requirements before being shipped out.
How Do I Change the Instrument Cluster in My Car?
Changing the instrument cluster in your car is a straightforward, but important task that should be undertaken with care. Depending on the age and make of your car, you may need to purchase a new unit or find an aftermarket replacement. Before beginning, it’s essential to ensure you have all the necessary tools including screwdrivers and pliers as well as access to an electrical wiring diagram for your vehicle.
Once you’ve prepared everything correctly, begin by unplugging any existing wires from the back of the instrument cluster and then carefully removing each mounting screw from around its frame until it can be removed completely from inside of your dashboard. You’ll then need to install any required wiring adapters before bolting down your new instrument cluster into place. Finally, reconnect all of the electrical components previously disconnected before turning on ignition and testing out each gauge one by one – ensuring they’re working properly before driving away!
Can I Change My Instrument Cluster?
Yes, you can change your instrument cluster! Whether you’re looking for a better design or more features than the one that came with your car, there are plenty of options available. You’ll have to consider what type of instrument cluster is compatible with your vehicle and decide on whether you want an aftermarket system or a factory replacement.
Aftermarket systems offer custom designs and additional features such as fuel economy readouts, temperature gauges, and shift lights. If all you need is a basic upgrade then it’s possible to purchase an OEM replacement from a parts dealer. Whichever route you choose make sure to check compatibility before making any purchases so that everything fits properly when installed in your vehicle.
Once the new instrument cluster is installed, don’t forget to recalibrate it according to manufacturer instructions so that all readings are accurate and reliable!
5. How to print your own (DIY) speedometer (instrument cluster) – Printing
Gauge Face Design Software
Gauge face design software is a type of specialized program used to create custom gauge faces for various types of instrumentation. This software can be used to customize the appearance and functionality of digital, analog, or hybrid instruments by allowing users to select from a variety of fonts, colors, and images. Additionally, many programs have features such as automatic scaling capabilities that help ensure accurate readings when using multiple gauges in one system.
With this type of software, users can quickly and easily create unique designs that meet their specific needs.
Gauge Face Material
Gauge face material is an important consideration when selecting a gauge for any application. The primary characteristic of the material should be durability, as it will be exposed to varying temperatures and other environmental conditions depending on the application. Popular materials used in gauges include aluminum, stainless steel, brass and plastic – each has its own set of advantages and disadvantages depending on the type of environment they are being used in.
To ensure accuracy and reliability, choosing the right gauge face material is essential.
Screen Printing Gauge Faces
Screen printing gauge faces is a process used to create custom, durable and accurate instrument panel gauges. This technique involves placing a stencil of the desired design onto the face of the gauge and then screen printing it with inks that are specially designed to resist damage from heat, vibration and chemicals. The result is an attractive, high-quality product that provides accuracy and reliability for many years.
How to Make Custom Gauge Cluster
Making a custom gauge cluster is a great way to add some personality to your vehicle. To begin, you’ll need to decide what type of gauges you want and gather all the necessary components such as wiring harnesses, bulbs, resistors and switches. Once everything is in place, you’ll be able to install the gauges into the dashboard area of your car.
After that, it’s time for testing and connecting all the wires before finally mounting your new cluster onto your vehicle’s dash! With a bit of patience and skill, you can easily make an eye-catching custom gauge cluster that will give your ride its own unique look.
How to Customize Speedometer
Customizing your speedometer can be an easy and cost-effective way to give your vehicle a unique look. By investing in a custom dial face, you can change the color and design of the gauge as well as add aftermarket gauges to measure additional performance metrics. You may also want to consider adding LED backlighting for better visibility at night or installing chrome trim rings to give your instrument cluster a more polished appearance.
With some basic tools, patience, and attention to detail, you can easily customize your car’s speedometer for an enhanced driving experience.
Gauge Face Overlay
Gauge face overlays are a great way to customize the look of your vehicle’s instrument cluster. They add an extra layer of protection to your gauges, as well as providing a unique and eye-catching design that can be tailored to fit any style. These overlays are easy to install and come in a variety of styles including carbon fiber, brushed aluminum, chrome, and more.
With so many options available you’re sure to find one that fits perfectly with your vehicle!
How to Install Custom Gauges in a Car
Installing custom gauges in a car is a great way to customize its appearance and monitor performance. To get started, you’ll need the right tools for the job—including wiring, switches, adapters and the gauge itself. Additionally, you will want to make sure that your vehicle’s electrical system is properly grounded before beginning installation.
Once all parts are gathered and connected correctly according to instructions provided with the gauge kit, testing should be done before finalizing installation. With some patience and proper preparation, installing custom gauges can add both style and functionality to your vehicle!
Conclusion
In conclusion, customizing gauge faces is a great way to personalize your car and give it an added level of style. It’s not as difficult or expensive as you may think, and with the right preparation and materials you can have a unique set of gauges that perfectly reflect your personality. With just some basic knowledge and careful attention to detail, the possibilities for customization are endless!
