Testing the air suspension compressor relay is a relatively straightforward process. Keep in mind that specific steps may vary depending on the make and model of your vehicle, so it’s always a good idea to consult your car’s manual for accurate information.
Here are the general steps to test an air suspension compressor relay:
Tools and Materials Needed:
- Multimeter (digital or analog)
- 12V test light (optional but helpful)
- Vehicle owner’s manual or repair manual
Step 1: Locate the Relay:

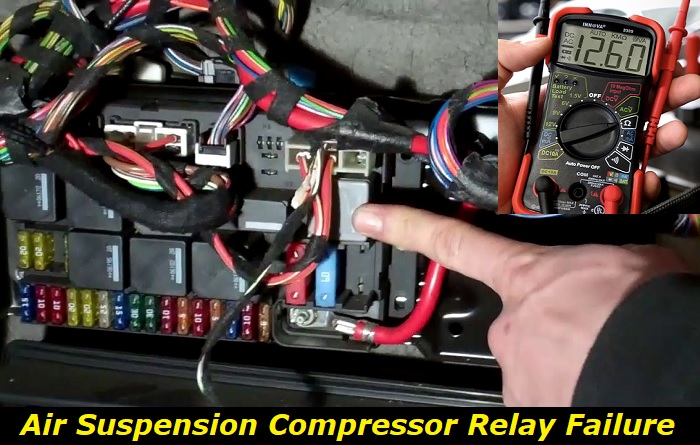

The air suspension compressor relay is typically located in the engine bay fuse box or relay box. Refer to your vehicle’s manual to find the exact location.
Step 2: Remove the Relay:
Once you’ve located the relay, carefully remove it from its socket. You can do this by gently pulling it out with your fingers or using a pair of pliers if necessary. Make sure the car is turned off before proceeding.
Step 3: Inspect the Relay:
Examine the relay for any signs of damage or corrosion. Check the relay pins and the relay socket for any signs of burning or melting. If you notice any physical damage, you may need to replace the relay.
Step 4: Set up the Multimeter:
Turn on your multimeter and set it to the “Ohms” or “Resistance” setting. If your multimeter has multiple resistance ranges, choose the lowest one (e.g., 200Ω).
Step 5: Test the Relay Coils:
A relay has two sets of contacts: the coil contacts and the switch contacts. The coil contacts are typically labeled as “Coil” or “C” on the relay diagram. Touch the multimeter probes to the coil terminals of the relay (where you removed it from the socket). It doesn’t matter which probe is connected to which coil terminal. A functioning relay should display a low resistance reading (usually a few ohms) on the multimeter. If the reading is infinite (OL or over limit), the relay’s coil is likely faulty, and you should replace it.
Step 6: Test the Switch Contacts:
The switch contacts are usually labeled as “NO” (Normally Open) and “NC” (Normally Closed) on the relay diagram. These contacts control the flow of current when the relay is activated. To test them, touch one multimeter probe to the “NO” terminal and the other probe to the “C” terminal. With the relay not energized (removed from the socket), the multimeter should show infinite resistance (open circuit). Next, apply power to the relay coil by connecting the relay back to its socket or using a jumper wire. With the relay energized, the multimeter should now show a low resistance (closed circuit) between the “NO” and “C” terminals. If you get different results or if the contacts do not switch properly, the relay is likely faulty and needs replacement.
Optional Step: Test with a 12V Test Light:
You can also use a 12V test light to check if the relay is receiving power when the ignition is turned on. Connect the test light’s alligator clip to the battery positive terminal and touch the probe to the relay’s coil terminal (where you removed it from the socket). If the test light illuminates when you turn the ignition on, it means the relay is receiving power. However, this test does not guarantee the relay’s functionality, so it’s best to use a multimeter for a more comprehensive test.
Step 7: Reinstall or Replace the Relay:
After testing the relay, either reinstall it if it’s functioning correctly, or replace it with a new one if it’s found to be faulty.
Remember to always prioritize safety during the testing process, and if you’re unsure about any steps or findings, consult a professional mechanic for further assistance.
How to test ALC Relay GMC Air Ride Suspension
How to Reset Air Suspension
If your vehicle has an air suspension system, resetting it is relatively easy. To do this, you will need to use a specialized tool that can be purchased from most auto parts stores. Once you have the tool in hand, begin by disconnecting the negative battery cable and then raising the car until all four wheels are off the ground.
Next, locate the air suspension compressor and turn it on for five minutes or so to allow any trapped air out of the system. Finally, reconnect the negative battery cable and lower your vehicle back onto its wheels before restarting it up again – this should reset your air suspension system!
Credit: cararac.com
How Do I Know If My Air Suspension Compressor is Bad?
If you have an air suspension system, it is important to be aware of the signs that indicate if your air suspension compressor is bad. One common symptom of a failing air suspension compressor is uneven ride height. This means that one side or corner of the vehicle may sit lower than another when parked.
In some cases, this can cause the vehicle to lean while driving and make steering more difficult. If your car also feels bouncier than usual as you drive, this could also be a sign that something’s wrong with your air suspension compressor. Additionally, listen for rattling noises coming from underneath the hood or in the trunk area which could indicate an issue with your compressor.
Finally, check for any error codes on your dashboard display which could indicate problems with components like solenoids or valves within the system – all powered by your air suspension compressor! If you notice any of these symptoms, it’s important to take action quickly and get help from a professional mechanic before further damage occurs to other parts of the system.
What Does Air Suspension Relay Do?
Air suspension relays play an important role in vehicles with air suspensions. By controlling the amount of air that is fed into the system, they ensure that your vehicle’s suspension remains at optimal levels and provide a smoother ride. When your vehicle is being driven, it can be subject to changes in terrain and speed, which can cause the pressure within your air suspension system to fluctuate significantly.
The relay helps regulate this by using sensors to detect when there are changes in the pressure so it can adjust accordingly and maintain a comfortable level for driving. Additionally, these relays also help keep track of any leaks or other malfunctions within your system so you’re always aware of any potential issues before they become more serious problems down the line. All-in-all, having an air suspension relay installed on your car means that you’ll have greater control over how your car drives and handles different conditions while also keeping it running smoothly for longer periods of time.
How Do You Test an Air Ride Pressure Switch?
Testing an air ride pressure switch is relatively straightforward. First, make sure the engine is off and disconnect the battery. Then remove the wiring harness from the switch and check for any signs of damage or corrosion on both ends.
Next, use a multimeter to measure resistance across each terminal of the switch while observing its LED indicator light. You should see a change in resistance when you press down on either side of the button; if not, then it’s likely that your pressure switch needs to be replaced. Finally, take note of any other readings you get from your multimeter as this will help you determine whether or not there are any further issues with your vehicle’s air ride system that need to be addressed before attempting to replace or repair anything else related to it.
How Do You Test an Airmatic Compressor?
Testing an AirMatic compressor is a relatively simple process and can be done in just a few steps. First, you’ll need to locate the air lines that are connected to the compressor. Next, you’ll want to disconnect them from the unit and remove any dust or dirt that may have built up on the connections.
Once they’ve been cleaned off, reconnect them back onto the compressor but do not turn it on yet. After that’s done, use an air pressure gauge to check for proper pressure in each of the lines by applying some pressure with your hand pump and then checking it against what is specified in your manual. Finally, if everything looks good turn on your compressor and allow it to run for about 10 minutes before shutting it off again; this will help ensure all components are working correctly without any issues due to improper pressures or other problems.
If no issues arise during this time then congratulations – you’ve successfully tested your AirMatic Compressor!
Conclusion
Testing the air suspension compressor relay is an important part of keeping your car in good working order. By testing the compressor regularly, you can ensure that it is functioning properly and help prevent any problems from occurring with the air suspension system. If you encounter any issues when testing or if you are unsure how to do so, consult a professional as soon as possible.
With regular testing and proper maintenance, you can keep your car’s air suspension running smoothly for many years to come.
